Wind Components and Crosswind Limits

PerformancePPL · CPL · ATPL8 min readUpdated Sep 2026
Definition

Wind components are the parts of the surface wind that act along a runway, as a headwind or a tailwind, and across it, as a crosswind. The along-runway component changes the groundspeed at lift-off and touchdown and so the take-off and landing distances; the crosswind component is checked against the aeroplane's and the operator's crosswind limits.

An aeroplane takes off and lands relative to the air, but it accelerates and stops relative to the runway. The wind makes the difference. Its component along the runway, a headwind or a tailwind, changes the groundspeed at which the aeroplane lifts off or touches down, and so the distance it needs. Its component across the runway, the crosswind, changes little in the distance but a great deal in the handling, and every aeroplane has a crosswind figure that its pilots respect.

Wind is therefore resolved into components for every take-off and landing calculation. The rules then treat the result conservatively: only half of a reported headwind may be credited, and one and a half times a reported tailwind must be assumed. Separately, the flight manual and the operator set the crosswind and tailwind limits within which the aeroplane may be operated.

On this page
  1. Resolving wind components
  2. Headwind and tailwind effects
  3. Wind factoring: 50 per cent and 150 per cent
  4. Crosswind component and crosswind limits
  5. Maximum demonstrated crosswind
  6. Tailwind limits
  7. Frequently asked questions

Resolving wind components

The surface wind is reported as the direction it blows from and its speed. The first step is the angle between the wind direction and the runway direction; runway 27, for example, points about 270°. The components follow from simple trigonometry:

Angle between wind and runway sin (crosswind share) cos (headwind share)
15° 0.26 0.97
30° 0.50 0.87
45° 0.71 0.71
60° 0.87 0.50
90° 1.00 0.00

Three examples:

Swapping sine and cosine is the classic error. A useful check is that at small angles the crosswind is the small component.

Use the same north for both. Runway designators, the surface wind passed by the tower and the ATIS are magnetic. METAR and TAF winds are true. Mixing them puts the angle out by the local magnetic variation, which is small in western Europe but large at high latitudes.

In the cockpit the clock code gives a quick crosswind estimate: read the angle as minutes past the hour and take that fraction of the wind. Fifteen degrees gives a quarter, 30° a half, 45° three quarters and 60° or more the whole wind. It is exact at 30° and 90° and very slightly low below 30°, but between 30° and 90° it overestimates: three quarters against a true 0.71 at 45°, and the whole wind against 0.87 at 60°. For a limit check, that error is on the safe side. It does not give the headwind, for which the cosines above are needed. Many handbooks also print a crosswind component chart that does the same resolution graphically.

A crosswind component chart, a graph for resolving a wind into its headwind and crosswind components.
A crosswind component chart. Entered with the wind speed and the angle between the wind and the runway, it gives the headwind and crosswind components, the same answer as multiplying the wind speed by the cosine and the sine of the angle.Federal Aviation Administration · Public domain · Wikimedia Commons

Headwind and tailwind effects

The aeroplane lifts off at a fixed airspeed. With a headwind it reaches that airspeed at a lower groundspeed; with a tailwind, at a higher one. Since the distance needed to accelerate grows rapidly with the groundspeed to be reached, a headwind shortens the take-off and a tailwind lengthens it, and by more than the same headwind would save. As a rule of thumb, a tailwind of 10 per cent of the lift-off speed increases the take-off distance by about 20 per cent. A tailwind also lengthens both parts of an accelerate-stop: more distance to reach the decision speed and a higher groundspeed when braking begins.

On landing the effect is similar, because the energy to be dissipated depends on the square of the groundspeed. A 10 kt tailwind can add about 20 per cent or more to a transport aeroplane's landing distance, and runway overruns have repeatedly combined tailwind with a wet or contaminated runway and a long touchdown (see runway excursion).

In the climb, wind does not change the rate of climb, which depends on excess power, but it changes the gradient over the ground. A headwind steepens it and a tailwind flattens it, which matters when obstacles lie beyond the runway. The other factors that change the distances, such as density altitude, slope and surface, are covered in factors affecting take-off and landing performance.

Wind factoring: 50 per cent and 150 per cent

EASA's performance rules for commercial air transport require take-off and landing calculations to use not more than 50 per cent of a reported headwind component and not less than 150 per cent of a reported tailwind component. The factoring guards against a wind that turns out less helpful, or more harmful, than reported, and it deliberately treats a tailwind more harshly than a headwind.

Reported component Value used in the calculation
Headwind 20 kt 10 kt headwind
Headwind 6 kt 3 kt headwind
Tailwind 4 kt 6 kt tailwind
Tailwind 10 kt 15 kt tailwind

Whether the pilot applies the factors depends on the data. For large aeroplanes the factoring is written into the certified flight manual data, for example the landing distances under CS 25.125 and 14 CFR 25.125, so the crew enters the reported wind. The Class B charts in CAP 698 also include it, which is visible in the steeper slope of their tailwind lines. Where a chart does not include it, the pilot factors the wind before entering it. Applying the factors twice, or not at all, is a common error.

For a Class B landing, the dispatch check is also made in still air on the most favourable runway, in case the forecast headwind does not materialise, as well as with the factored forecast wind on the runway most likely to be in use.

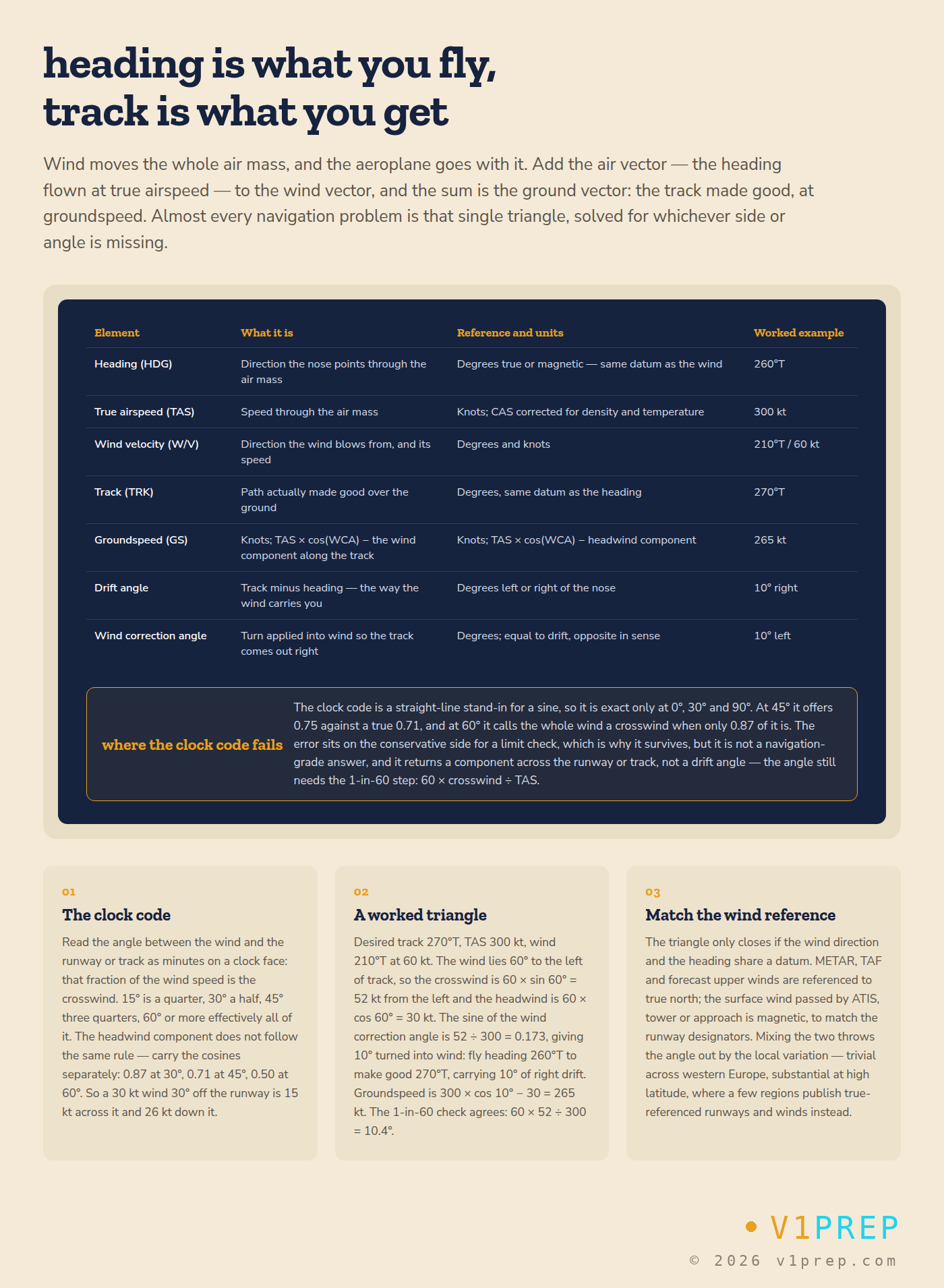

Resolving the wind with sines and cosines or the clock code, and why the wind direction and the runway or track must share the same north. v1prep schematic.
Resolving the wind with sines and cosines or the clock code, and why the wind direction and the runway or track must share the same north. v1prep schematic.Illustration © v1prep

Crosswind component and crosswind limits

A crosswind has little direct effect on take-off or landing distance, but it tests control. On the ground the aeroplane tends to weathercock into the wind and the upwind wing tends to rise; in the air it drifts downwind. The pilot holds aileron into the wind during the take-off roll and uses rudder to keep straight, and on landing either crabs into wind and aligns the aeroplane with the runway before touchdown or lands wing-low. These techniques are covered in landing technique and crosswind operations.

Crosswind limits are usually stated with gusts included, so the crosswind component of the gust value, not only of the steady wind, is compared with the limit. Strong or gusty crosswinds also change the approach: on the A320, with a crosswind above 20 kt, the approach speed should be at least VLS + 5 kt, and the increment may be raised up to 15 kt at the crew's discretion.

A contaminated runway reduces the crosswind that can be controlled, because the tyres can produce less side force. Airbus publishes maximum recommended crosswinds for the A320 by runway condition, the same for take-off and landing, including:

Runway condition Maximum recommended crosswind
Dry, damp or wet, or up to 3 mm of water, slush or snow 38 kt
Frost, or compacted snow at −15 °C or colder (RWYCC 4) 29 kt
Standing water or slush more than 3 mm and up to 13 mm (RWYCC 2) 20 kt
Ice, cold and dry (RWYCC 1) 15 kt
A Bombardier Dash 8 Q300 turboprop of Air Nelson landing at Tauranga Airport in a crosswind.
An Air Nelson Dash 8 Q300 landing in a crosswind at Tauranga, New Zealand. A crosswind has little direct effect on the landing distance, but it must be held with the controls down to touchdown and during the roll-out, which is why crosswind limits exist.Ugur Ozden · CC BY-SA 2.0 · Wikimedia Commons

Maximum demonstrated crosswind

The maximum demonstrated crosswind component is the highest crosswind at which the aeroplane was shown to be controllable during certification, flown by a test pilot with normal skill. It records what was demonstrated, not what the aeroplane can theoretically withstand. For light aeroplanes, FAA certification has required satisfactory control in a 90° crosswind of at least 0.2 VS0, and the value demonstrated is published in the POH. For large aeroplanes, CS 25.237 and its FAA equivalent require a demonstrated 90° crosswind component to be established for dry runways.

The figure is not automatically a limitation. It becomes one only if the flight manual lists it in the limitations section, or if the operator adopts it as an operating limit in its operations manual. The A320's demonstrated figure is 38 kt, gusts included; Airbus states that it is not a flight manual limitation and recommends that operators do not intentionally exceed it. The Embraer E190 (first generation) has published limits of 38 kt on a dry runway and 31 kt on a wet one. For a light aeroplane pilot, the demonstrated figure is a sensible ceiling for a personal limit, to be approached only with experience and reduced for gusts and a slippery surface.

Tailwind limits

Many transport aeroplanes are limited to a tailwind component of 10 kt for take-off and landing, the value up to which their landing performance is normally certified. The A320 and the Boeing 737 NG are both limited to 10 kt. Higher figures exist: the EASA type certificate data sheet for the 737-8 records a 15 kt tailwind capability as demonstrated, but states that this is not an operational approval above 10 kt, while the operator limits quoted for the Embraer E190-E2 allow 15 kt. Operators often set lower tailwind limits on wet or contaminated runways, where the stopping margin is already small.

Two further rules shape which runway is used. Under ICAO PANS-OPS, noise abatement should not be the deciding factor in choosing a runway when the crosswind component, including gusts, exceeds 15 kt or the tailwind component, including gusts, exceeds 5 kt. And under ICAO Annex 14, the number and orientation of an aerodrome's runways should give a usability factor of at least 95 per cent: the crosswind component should stay below the value set for the aeroplanes the aerodrome serves at least 95 per cent of the time.

Frequently asked questions

How do you calculate the crosswind component?

Find the angle between the wind direction and the runway direction, then multiply the wind speed by the sine of that angle. The headwind or tailwind component is the wind speed multiplied by the cosine. With runway 27 and a surface wind of 240 degrees at 20 kt, the angle is 30 degrees, so the crosswind is 20 × 0.5 = 10 kt and the headwind is 20 × 0.87, about 17 kt.

What is the clock code for crosswind?

The clock code treats the angle between the wind and the runway as minutes past the hour and takes that fraction of the wind speed as the crosswind: 15 degrees gives a quarter, 30 degrees a half, 45 degrees three quarters and 60 degrees or more the whole wind. Between 30 and 90 degrees it overestimates the crosswind, which is on the safe side for a limit check. It does not give the headwind, which still needs the cosine.

What is the 50 per cent headwind and 150 per cent tailwind rule?

When take-off and landing distances are calculated, no more than 50 per cent of a reported headwind component may be credited and no less than 150 per cent of a reported tailwind component must be used. The rule guards against the wind being less helpful or more harmful than reported. Many flight manual charts already include the factoring, so the pilot must check whether to enter the reported wind or apply the factors.

Is the maximum demonstrated crosswind a limitation?

Not necessarily. It is the highest crosswind component at which the aeroplane was shown to be controllable during certification, flown by a test pilot with normal skill. It becomes a limitation only if the flight manual places it in the limitations section or the operator adopts it as an operating limit. Airbus, for example, gives 38 kt for the A320, gusts included, and recommends not intentionally exceeding it.

What is the maximum tailwind for take-off and landing?

It is set by the flight manual and the operator. For many airliners it is 10 kt: the A320 and the Boeing 737 NG are both limited to a 10 kt tailwind component for take-off and landing. A tailwind has a large effect on distance, because the aeroplane must reach a higher groundspeed; a tailwind of about 10 per cent of the lift-off speed increases a light aeroplane's take-off distance by about 20 per cent.
